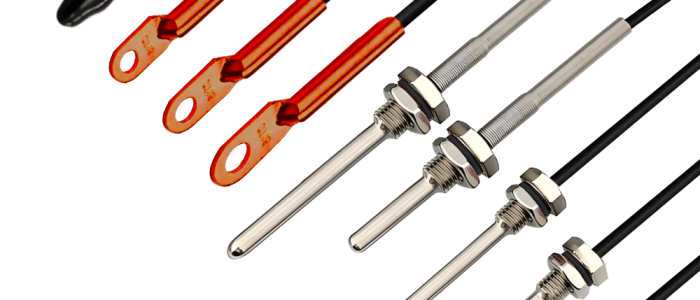

产品简述
瑜立智能YL-TM-30-150NTC-2K-3380温度传感器是一种热敏电阻、探头，导线输出的测量环境温度传感器，其原理为：电阻值随着温度上升而迅速下降。其通常由2或3种金属氧化物组成, 混合在类似流体的黏土中，并在高温炉内锻烧成致密的烧结陶瓷。实际尺寸十分灵活，本系列产品有螺纹式、侧耳式、直柱式、环氧树脂，适用于各种需实时精确的温度测量应用场景。
典型应用
- 电机温度测量
- 水箱温度测量
- 家电温度测量
- 机械设备温度测量

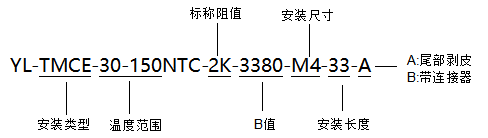

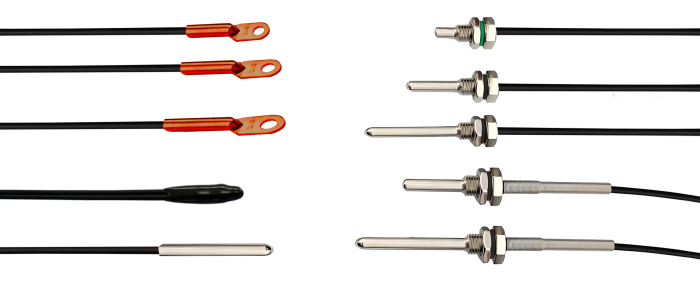

编码说明
| 产品参数 | ||||||
| 型号 | 外壳材质 | 外壳长度 | 安装尺寸 | 标称阻值 | B值 | 温度测量范围 |
| YL-TM-30-150NTC-2K-3380-M8-17 | 铜镀镍或不锈钢 | 17mm | M8*1.25mm螺纹 | 2k | 3380 | -30℃~150℃ |
| YL-TM-30-150NTC-2K-3380-M8-37 | 铜镀镍或不锈钢 | 37mm | M8*1.25mm 螺纹 | 2k | 3380 | -30℃~150℃ |
| YL-TM-30-150NTC-2K-3380-M8-57 | 铜镀镍或不锈钢 | 57mm | M8*1.25mm 螺纹 | 2k | 3380 | -30℃~150℃ |
| YL-TM-30-150NTC-2K-3380-M10-42 | 铜镀镍或不锈钢 | 42mm | M10*1.5mm 螺纹 | 2k | 3380 | -30℃~150℃ |
| YL-TM-30-150NTC-2K-3380-M10-62 | 铜镀镍或不锈钢 | 62mm | M10*1.5mm 螺纹 | 2k | 3380 | -30℃~150℃ |
| YL-TMCE-30-150NTC-2K-3380-M4-33-A | 紫铜外壳 | 33mm | Φ4.2mm侧耳 | 2k | 3380 | -30℃~150℃ |
| YL-TMCE-30-150NTC-2K-3380-M4-20-B | 不锈钢 | 20mm | Φ4.2mm侧耳 | 2k | 3380 | -30℃~150℃ |
| YL-TMCE-30-150NTC-2K-3380-M6-40-A | 紫铜外壳 | 40mm | Φ6.2mm侧耳 | 2k | 3380 | -30℃~150℃ |
| YL-TMCE-30-150NTC-2K-3380-M8-56-A | 紫铜外壳 | 56mm | Φ8.5mm侧耳 | 2k | 3380 | -30℃~150℃ |
| YL-TMZ-30-150NTC-2K-3380-C5-25 | 不锈钢 | 33mm | Φ5mm直柱 | 2k | 3380 | -30℃~150℃ |
| YL-TMSD-30-150NTC-2K-3380-14-A | 环氧树脂传感器测量端 | 14mm | Φ4mm滴耳 | 2k | 3380 | -30℃~150℃ |
| YL-TMSD-30-150NTC-2K-3380-14-B | 环氧树脂传感器测量端 | 14mm | Φ4mm滴耳 | 2k | 3380 | -30℃~150℃ |
产品结构图

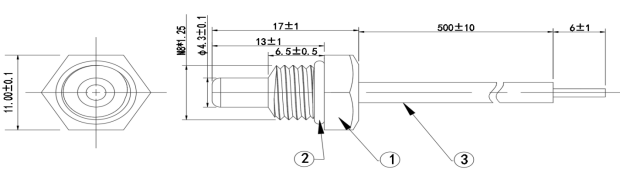

1# YL-TM-30-150NTC-2K-3380-M8-17
| # | 1 | 2 | 3 |
| 参数 | 外壳材质：铜镀镍或不锈钢 | 绿氟密封圈 外径φ9mmx1mm线径 | 双芯排线导体规格 0.35²mm |
2# YL-TM-30-150NTC-2K-3380-M8-37
| # | 1 | 2 | 3 |
| 参数 | 外壳材质：铜镀镍或不锈钢 | 绿氟密封圈外径φ10*Φ6*1.5线径 | 外径φ3.6mm双芯排线导体规格 0.35²mm |

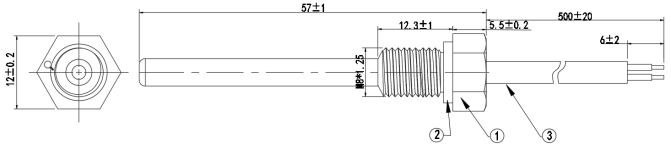

3# YL-TM-30-150NTC-2K-3380-M8-57
| # | 1 | 2 | 3 |
| 参数 | 外壳材质：铜镀镍或不锈钢 | 绿氟密封圈外径φ10*Φ6*1.5线径 | 外径φ3.6mm双芯排线导体规格 0.35²mm |
4# YL-TM-30-150NTC-2K-3380-M10-42
| # | 1 | 2 | 3 | 4 | 5 |
| 参数 | 外壳材质：铜镀镍或不锈钢 | 绿氟密封圈外径φ10.5*1.5线径 | 金属护线套管 | 双芯排线导体规格 0.35²mm | 热缩套管 |

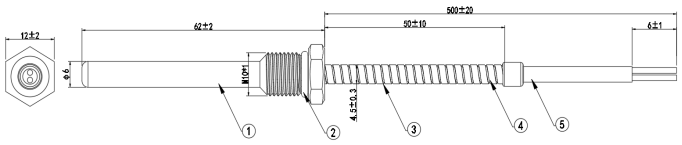

5# YL-TM-30-150NTC-2K-3380-M10-62
| # | 1 | 2 | 3 | 4 | 5 |
| 参数 | 外壳材质：铜镀镍或不锈钢 | 绿氟密封圈外径φ10.5*1.5线径 | 金属护线套管 | 双芯排线导体规格 0.35²mm | 热缩套管 |

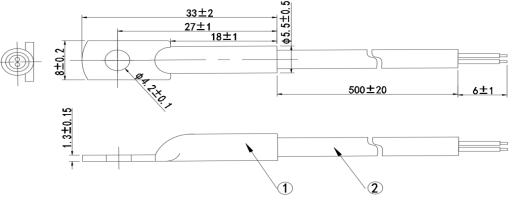

6# YL-TMCE-30-150NTC-2K-3380-M4-33-A
| # | 1 | 2 |
| 参数 | 外壳材质：紫铜 | 双芯排线 导体规格： 0.35²mm |

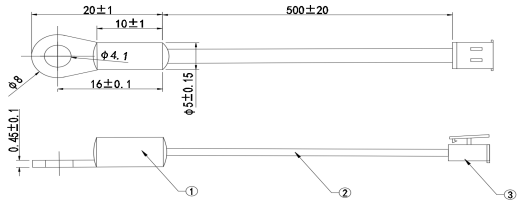

7# YL-TMCE-30-150NTC-2K-3380-M4-33-B
| # | 1 | 2 | 3 |
| 参数 | 外壳材质：不锈钢 | 双芯排线 导体规格： 0.35²mm | 连接器XHB2.54MM直针 |

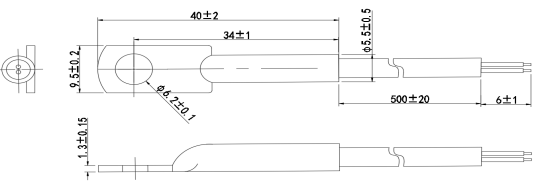

8# YL-TMCE-30-150NTC-2K-3380-M6-40-A
| # | 1 | 2 |
| 参数 | 外壳材质：紫铜 | 双芯排线 导体规格： 0.35²mm |

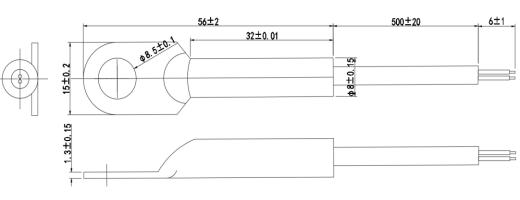

9# YL-TMCE-30-150NTC-2K-3380-M8-56-A
| # | 1 | 2 |
| 参数 | 外壳材质：紫铜 | 双芯排线 导体规格： 0.35²mm |

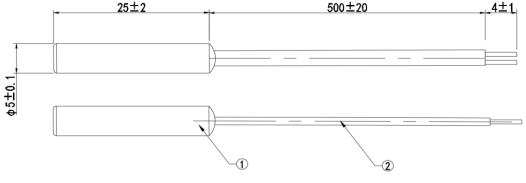

10# YL-TMCE-30-150NTC-2K-3380-C5-25
| # | 1 | 2 |
| 参数 | 外壳材质：不锈钢 | 双芯排线 导体规格： 0.35²mm |

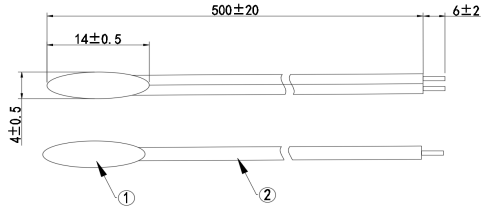

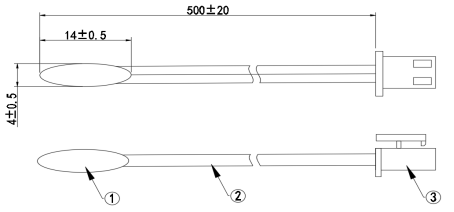

11# YL-TMSD-30-150NTC-2K-3380-14-A
| # | 1 | 2 |
| 参数 | 外壳材质：环氧树脂传感器测量端 | 双芯排线 导体规格： 0.35²mm |
12# YL-TMSD-30-150NTC-2K-3380-14-B
| # | 1 | 2 | 3 |
| 参数 | 外壳材质：环氧树脂传感器测量端 | 双芯排线 导体规格： 0.35²mm | XH-2.54-2P连接器 |
标称阻值：2K Ω@25℃；公差精度：+/-1%
B值：3380K@25/50℃；B值精度：+/-1%
温度/阻值对照表
| 温度 | 阻值（k ohms) | 阻值（k ohms) | 阻值（k ohms) |
| -30 | 24.2774 | 23.4525 | 22.6534 |
| -29 | 23.0067 | 22.2368 | 21.4905 |
| -28 | 21.8107 | 21.092 | 20.3949 |
| -27 | 20.6847 | 20.0136 | 19.3623 |
| -26 | 19.6242 | 18.9974 | 18.3887 |
| -25 | 18.6248 | 18.0393 | 17.4704 |
| -24 | 17.6828 | 17.1357 | 16.6038 |
| -23 | 16.7945 | 16.2832 | 15.7858 |
| -22 | 15.9565 | 15.4785 | 15.0133 |
| -21 | 15.1656 | 14.7187 | 14.2836 |
| -20 | 14.419 | 14.0011 | 13.5939 |
| -19 | 13.7138 | 13.3229 | 12.9419 |
| -18 | 13.0475 | 12.6819 | 12.3253 |
| -17 | 12.4178 | 12.0758 | 11.742 |
| -16 | 11.8224 | 11.5024 | 11.1899 |
| -15 | 11.2593 | 10.9598 | 10.6672 |
| -14 | 10.7264 | 10.4461 | 10.1721 |
| -13 | 10.2221 | 9.9597 | 9.7031 |
| -12 | 9.7446 | 9.499 | 9.2586 |
| -11 | 9.2923 | 9.0624 | 8.8372 |
| -10 | 8.8638 | 8.6485 | 8.4375 |
| -9 | 8.4577 | 8.256 | 8.0584 |
| -8 | 8.0726 | 7.8838 | 7.6986 |
| -7 | 7.7074 | 7.5305 | 7.357 |
| -6 | 7.3609 | 7.1953 | 7.0327 |
| -5 | 7.032 | 6.8769 | 6.7246 |
| -4 | 6.7198 | 6.5746 | 6.4318 |
| -3 | 6.4234 | 6.2873 | 6.1536 |
| -2 | 6.1417 | 6.0143 | 5.889 |
| -1 | 5.8741 | 5.7548 | 5.6374 |
| 0 | 5.6197 | 5.508 | 5.398 |
| 1 | 5.3779 | 5.2733 | 5.1702 |
| 2 | 5.1478 | 5.0499 | 4.9533 |
| 3 | 4.929 | 4.8373 | 4.7468 |
| 4 | 4.7207 | 4.6348 | 4.5501 |
| 5 | 4.5224 | 4.4421 | 4.3627 |
| 6 | 4.3336 | 4.2584 | 4.1841 |
| 7 | 4.1538 | 4.0834 | 4.0138 |
| 8 | 3.9824 | 3.9166 | 3.8515 |
| 9 | 3.8192 | 3.7576 | 3.6966 |
| 10 | 3.6635 | 3.6059 | 3.5489 |
| 11 | 3.5151 | 3.4612 | 3.4079 |
| 12 | 3.3735 | 3.3232 | 3.2733 |
| 13 | 3.2384 | 3.1914 | 3.1447 |
| 14 | 3.1095 | 3.0656 | 3.022 |
| 15 | 2.9864 | 2.9454 | 2.9047 |
| 16 | 2.8689 | 2.8307 | 2.7926 |
| 17 | 2.7567 | 2.721 | 2.6855 |
| 18 | 2.6495 | 2.6162 | 2.5831 |
| 19 | 2.547 | 2.516 | 2.4852 |
| 20 | 2.4491 | 2.4202 | 2.3915 |
| 21 | 2.3555 | 2.3286 | 2.3018 |
| 22 | 2.266 | 2.241 | 2.2161 |
| 23 | 2.1803 | 2.1571 | 2.1339 |
| 24 | 2.0984 | 2.0768 | 2.0553 |
| 25 | 2.02 | 2 | 1.98 |
| 26 | 1.9464 | 1.9264 | 1.9064 |
| 27 | 1.8759 | 1.8559 | 1.836 |
| 28 | 1.8083 | 1.7884 | 1.7685 |
| 29 | 1.7435 | 1.7237 | 1.7039 |
| 30 | 1.6814 | 1.6617 | 1.642 |
| 31 | 1.6218 | 1.6022 | 1.5827 |
| 32 | 1.5647 | 1.5452 | 1.5258 |
| 33 | 1.5099 | 1.4905 | 1.4713 |
| 34 | 1.4573 | 1.4381 | 1.419 |
| 35 | 1.4068 | 1.3877 | 1.3689 |
| 36 | 1.3583 | 1.3394 | 1.3207 |
| 37 | 1.3117 | 1.2931 | 1.2746 |
| 38 | 1.267 | 1.2485 | 1.2303 |
| 39 | 1.224 | 1.2058 | 1.1877 |
| 40 | 1.1827 | 1.1647 | 1.1469 |
| 41 | 1.1431 | 1.1253 | 1.1076 |
| 42 | 1.1049 | 1.0837 | 1.0699 |
| 43 | 1.0683 | 1.0509 | 1.0337 |
| 44 | 1.033 | 1.0159 | 0.9989 |
| 45 | 0.9991 | 0.9822 | 0.9655 |
| 46 | 0.9664 | 0.9498 | 0.9333 |
| 47 | 0.935 | 0.9186 | 0.9024 |
| 48 | 0.9048 | 0.8886 | 0.8726 |
| 49 | 0.8757 | 0.8598 | 0.844 |
| 50 | 0.8477 | 0.832 | 0.8165 |
| 51 | 0.8208 | 0.8053 | 0.79 |
| 52 | 0.7948 | 0.7795 | 0.7645 |
| 53 | 0.7698 | 0.7547 | 0.7399 |
| 54 | 0.7456 | 0.7309 | 0.7163 |
| 55 | 0.7224 | 0.7079 | 0.6935 |
| 56 | 0.7 | 0.6857 | 0.6716 |
| 57 | 0.6784 | 0.6643 | 0.6505 |
| 58 | 0.6576 | 0.6438 | 0.6301 |
| 59 | 0.6375 | 0.6239 | 0.6105 |
| 60 | 0.6182 | 0.6048 | 0.5916 |
| 61 | 0.5995 | 0.5863 | 0.5734 |
| 62 | 0.5815 | 0.5685 | 0.5558 |
| 63 | 0.5641 | 0.5513 | 0.5388 |
| 64 | 0.5473 | 0.5348 | 0.5225 |
| 65 | 0.5311 | 0.5188 | 0.5067 |
| 66 | 0.5154 | 0.5033 | 0.4915 |
| 67 | 0.5003 | 0.4884 | 0.4768 |
| 68 | 0.4857 | 0.4741 | 0.4626 |
| 69 | 0.4716 | 0.4602 | 0.4489 |
| 70 | 0.458 | 0.4467 | 0.4357 |
| 71 | 0.4449 | 0.4338 | 0.4229 |
| 72 | 0.4321 | 0.4212 | 0.4106 |
| 73 | 0.4198 | 0.4091 | 0.3987 |
| 74 | 0.408 | 0.3974 | 0.3872 |
| 75 | 0.3965 | 0.3861 | 0.376 |
| 76 | 0.3853 | 0.3752 | 0.3653 |
| 77 | 0.3746 | 0.3646 | 0.3549 |
| 78 | 0.3642 | 0.3544 | 0.3448 |
| 79 | 0.3541 | 0.3445 | 0.3351 |
| 80 | 0.3444 | 0.3349 | 0.3257 |
| 81 | 0.335 | 0.3257 | 0.3166 |
| 82 | 0.3258 | 0.3167 | 0.3078 |
| 83 | 0.317 | 0.3081 | 0.2993 |
| 84 | 0.3085 | 0.2997 | 0.2911 |
| 85 | 0.3002 | 0.2915 | 0.2831 |
| 86 | 0.2922 | 0.2837 | 0.2754 |
| 87 | 0.2844 | 0.2761 | 0.2679 |
| 88 | 0.2769 | 0.2687 | 0.2607 |
| 89 | 0.2696 | 0.2615 | 0.2537 |
| 90 | 0.2625 | 0.2546 | 0.2469 |
| 91 | 0.2557 | 0.2479 | 0.2404 |
| 92 | 0.249 | 0.2414 | 0.234 |
| 93 | 0.2426 | 0.2351 | 0.2278 |
| 94 | 0.2364 | 0.229 | 0.2219 |
| 95 | 0.2303 | 0.2231 | 0.2161 |
| 96 | 0.2244 | 0.2173 | 0.2104 |
| 97 | 0.2188 | 0.2118 | 0.205 |
| 98 | 0.2132 | 0.2064 | 0.1997 |
| 99 | 0.2079 | 0.2011 | 0.1946 |
| 100 | 0.2027 | 0.1961 | 0.1896 |
| 101 | 0.1976 | 0.1911 | 0.1848 |
| 102 | 0.1927 | 0.1864 | 0.1802 |
| 103 | 0.188 | 0.1817 | 0.1756 |
| 104 | 0.1834 | 0.1772 | 0.1712 |
| 105 | 0.1789 | 0.1728 | 0.167 |
| 106 | 0.1745 | 0.1686 | 0.1628 |
| 107 | 0.1703 | 0.1645 | 0.1588 |
| 108 | 0.1662 | 0.1605 | 0.1549 |
| 109 | 0.1622 | 0.1566 | 0.1511 |
| 110 | 0.1584 | 0.1528 | 0.1474 |
| 111 | 0.1546 | 0.1491 | 0.1439 |
| 112 | 0.1509 | 0.1456 | 0.1404 |
| 113 | 0.1474 | 0.1421 | 0.137 |
| 114 | 0.1439 | 0.1387 | 0.1337 |
| 115 | 0.1406 | 0.1355 | 0.1306 |
| 116 | 0.1373 | 0.1323 | 0.1275 |
| 117 | 0.1341 | 0.1292 | 0.1245 |
| 118 | 0.131 | 0.1262 | 0.1215 |
| 119 | 0.128 | 0.1233 | 0.1187 |
| 120 | 0.1251 | 0.1204 | 0.1159 |
| 121 | 0.1223 | 0.1177 | 0.1132 |
| 122 | 0.1195 | 0.115 | 0.1106 |
| 123 | 0.1168 | 0.1124 | 0.1081 |
| 124 | 0.1142 | 0.1098 | 0.1056 |
| 125 | 0.1116 | 0.1073 | 0.1032 |
| 126 | 0.1092 | 0.1049 | 0.1009 |
| 127 | 0.1067 | 0.1026 | 0.0986 |
| 128 | 0.1044 | 0.1003 | 0.0964 |
| 129 | 0.1021 | 0.0981 | 0.0942 |
| 130 | 0.0999 | 0.0959 | 0.0921 |
| 131 | 0.0977 | 0.0938 | 0.0901 |
| 132 | 0.0956 | 0.0918 | 0.0881 |
| 133 | 0.0935 | 0.0898 | 0.0862 |
| 134 | 0.0915 | 0.0878 | 0.0843 |
| 135 | 0.0896 | 0.0859 | 0.0824 |
| 136 | 0.0877 | 0.0841 | 0.0807 |
| 137 | 0.0858 | 0.0823 | 0.0789 |
| 138 | 0.084 | 0.0805 | 0.0772 |
| 139 | 0.0822 | 0.0788 | 0.0756 |
| 140 | 0.0805 | 0.0772 | 0.074 |
| 141 | 0.0789 | 0.0756 | 0.0724 |
| 142 | 0.0772 | 0.074 | 0.0709 |
| 143 | 0.0756 | 0.0724 | 0.0694 |
| 144 | 0.0741 | 0.0709 | 0.0679 |
| 145 | 0.0726 | 0.0695 | 0.0665 |
| 146 | 0.0711 | 0.068 | 0.0651 |
| 147 | 0.0696 | 0.0667 | 0.0638 |
| 148 | 0.0682 | 0.0653 | 0.0625 |
| 149 | 0.0669 | 0.064 | 0.0612 |
| 150 | 0.0655 | 0.0627 | 0.0599 |
